Which Should You Use?

Estimated reading time: 9 minutes

Cuvette material can directly affect spectrophotometric measurements. Quartz, optical glass, and plastic cuvettes differ in wavelength transmission, chemical resistance, optical quality, sample-volume requirements, durability, and cost.

For most applications, the first question should be what wavelength will be measured? Quartz or fused silica is normally required for ultraviolet measurements, while optical glass and many plastics are suitable for visible-light measurements. For fluorescence, solvent-based analyses, or small sample volumes, additional factors become equally important.

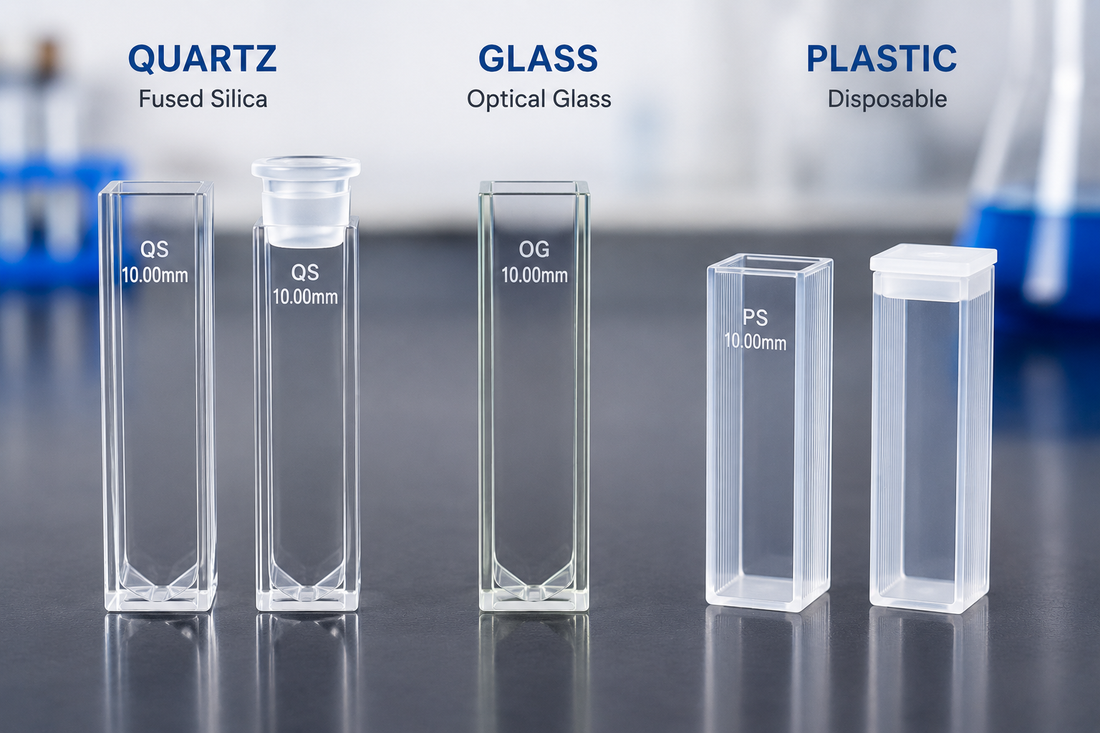

Cuvette Materials at a Glance

These ranges are representative rather than universal. When operating near the transmission limit of a cuvette, use the manufacturer's transmission curve or specified wavelength range.

Quartz and Fused-Silica Cuvettes

Products commonly described as quartz cuvettes are generally manufactured from fused silica or related high-purity silica materials.

Their principal advantage is excellent UV transmission. Many common UV-grade fused-silica cells can be used down to approximately 190 nm, while specialized grades are designed for still more demanding far-UV applications. The exact cutoff depends on silica purity, manufacturing method, cell construction, and manufacturer.

Quartz cuvettes are commonly used for:

• UV-Vis spectroscopy
• Nucleic acid and protein measurements
• Pharmaceutical analysis
• Environmental contaminant analysis
• Fluorescence spectroscopy
• Quantitative analytical methods requiring high optical quality

They are reusable and resistant to many aqueous solutions, acids, and organic solvents. Their principal disadvantages are cost and the additional care required during handling and cleaning.

Not All Quartz Cuvettes Are the Same

The word "quartz" alone does not fully specify optical performance.

Standard UV fused silica and specialized far-UV silica can differ substantially at very short wavelengths, particularly below approximately 220 nm. Two cells that look identical and both carry a "quartz" description may therefore perform differently in the far-UV.

For routine measurements at 260 or 280 nm, a suitable UV-grade fused-silica cell is normally sufficient. For measurements approaching 200 nm or below, the specified transmission curve becomes particularly important.

The purchasing specification should therefore be wavelength range, not simply "quartz."

Optical Glass Cuvettes

Optical glass provides good transmission in the visible region and is substantially less expensive than fused silica.

Typical optical-glass cuvettes have a lower useful wavelength limit around 320–340 nm, although the exact value varies with glass composition and manufacturer. Below this region, absorption by the glass itself can become significant.

Glass cuvettes are well suited to:

• Visible absorbance measurements
• Colorimetric assays
• Water and wastewater testing
• Educational laboratories
• Routine quality-control analysis

For an absorbance measurement at 600 nm, for example, an appropriate optical-glass cuvette can provide excellent performance. Paying substantially more for quartz provides little analytical benefit if UV transmission is not required.

Glass cuvettes are reusable, but strong alkalis, hydrofluoric acid, abrasive cleaning, and inappropriate thermal treatment can damage the optical surfaces.

Plastic Cuvettes

Plastic cuvettes are widely used because they are inexpensive, lightweight, and disposable. They are particularly convenient when laboratories process large numbers of samples.

However, "plastic" does not identify a single material. Disposable cuvettes may be manufactured from:

• Polystyrene (PS)
• PMMA/acrylic
• Specialized UV-transparent polymers
• Other proprietary optical polymers

Standard PS and PMMA cuvettes are generally intended for visible measurements. Specialized UV-transparent disposable cuvettes can extend into the UV, but the specified wavelength range must be checked for the individual product.

Plastic cuvettes are particularly useful when:

• Many samples are analyzed
• Cleaning reusable cells would be inefficient
• Carryover must be minimized
• Samples are primarily aqueous
• The measurement lies comfortably within the cuvette's specified transmission range

Their main limitations are chemical compatibility, lower scratch resistance, and greater variability in optical properties between materials and manufacturers.

A UV-Vis Spectrophotometer Does Not Always Require a Quartz Cuvette

This is a common purchasing misconception.

UV-Vis describes the capability of the instrument. It does not mean every measurement requires quartz.

If an assay is measured at 600 nm, an appropriate glass or plastic cuvette may be entirely suitable even though the instrument can also operate in the ultraviolet region.

Quartz becomes necessary when the analytical wavelength falls below the useful transmission range of the alternative material, when the method specifically requires fused silica, or when other optical requirements justify it.

The correct question is therefore:

At what wavelength will the sample actually be measured?

Path Length and the Beer-Lambert Law

The optical path length is the distance travelled by the light beam through the sample.

Most standard square cuvettes have a 10 mm (1 cm) path length. This corresponds conveniently to the Beer-Lambert relationship:

A = εbc

where A is absorbance, ε is molar absorptivity, b is optical path length, and c is concentration.

Because absorbance is proportional to path length, changing the path length changes the measured absorbance even when concentration remains unchanged.

A sample producing an absorbance of approximately 1.0 in a 10 mm cell would, under ideal Beer-Lambert behaviour, produce approximately 0.5 in a 5 mm cell.

Microvolume, flow-through, and specialized cells are available with other path lengths. Two cuvettes that physically fit the same spectrophotometer are therefore not necessarily analytically interchangeable.

Sample Volume: Standard, Semi-Micro, and Micro Cuvettes

Path length is not the same as sample volume.

A conventional 10 mm square cuvette commonly requires approximately 2.5–3.5 mL of sample for normal operation, depending on the cell dimensions and the height of the instrument beam.

This can be wasteful when samples are expensive, difficult to prepare, or available only in small quantities.

Semi-Micro Cuvettes

Semi-micro cuvettes retain the conventional 10 mm optical path but reduce the internal chamber width outside the optical region. Typical working volumes are around 1–1.5 mL, although designs vary.

Micro Cuvettes

Microvolume cells reduce the required volume further. Depending on geometry and instrument beam dimensions, working volumes may range from several hundred microlitres downward for specialized cells.

Many semi-micro and micro cells use black or opaque side walls to restrict the optical window, reduce stray light, and define the sample chamber.

A reduced-volume cuvette should not be selected by nominal volume alone. The sample must cover the complete instrument beam. A micro cell that works in one spectrophotometer may not work properly in another if their beam heights or dimensions differ.

For limited samples, therefore, check:

• Minimum working volume
• Optical path length
• Window height
• Beam height of the instrument
• Required cuvette dimensions

Two Clear Sides or Four Clear Sides?

Standard cuvettes may have two or four optically polished transparent faces.

For conventional absorbance spectroscopy, two clear opposing faces are normally sufficient. Light enters through one optical face and exits through the opposite face. The remaining surfaces may be frosted or textured to make handling easier.

Fluorescence measurements commonly use different optical geometry. Excitation light enters from one direction while emitted fluorescence is detected at approximately 90°.

A four-clear-side cell is therefore commonly required for conventional fluorescence instruments.

However, four clear faces alone do not make a cuvette suitable for fluorescence.

Cuvettes for Fluorescence Spectroscopy

Fluorescence measurements are particularly sensitive to background emission from the cuvette itself.

Standard fused silica can exhibit some intrinsic fluorescence depending on its composition, impurities, and excitation wavelength. For sensitive fluorescence measurements, use fluorescence-grade fused silica or another cell material specifically specified for low background fluorescence.

Plastic cuvettes require particular caution. Many polymers exhibit autofluorescence that can interfere with weak sample signals. A disposable plastic cuvette should therefore not be assumed suitable for fluorescence simply because it is optically transparent.

For fluorescence work, evaluate:

• Excitation wavelength
• Emission wavelength
• Number and orientation of optical faces
• Autofluorescence of the cell material
• Background signal
• Sample volume
• Chemical compatibility

For demanding fluorescence measurements, a dedicated low-fluorescence fused-silica cell is generally preferable to an unspecified UV-Vis cuvette.

Chemical Compatibility

Optical transmission is only one part of cuvette selection. The cuvette must also tolerate the sample and solvent.

Quartz / Fused Silica

Fused silica is resistant to water, most dilute acids, and many organic solvents. It is attacked by hydrofluoric acid and can also be damaged by concentrated or hot alkaline solutions.

Optical Glass

Optical glass is compatible with many aqueous solutions and organic solvents. Hydrofluoric acid attacks glass, while prolonged exposure to strong alkaline solutions can damage or etch the surface.

Plastic

Plastic requires the most careful compatibility assessment.

PS, PMMA, and specialized optical polymers can respond very differently to:

• Alcohols
• Acetone and other ketones
• Aromatic hydrocarbons
• Chlorinated solvents
• Acids
• Alkalis

A disposable cuvette may have the correct wavelength range yet still be unsuitable because the solvent clouds, crazes, swells, or dissolves the polymer.

For solvent-based analyses, check the chemical-resistance information for the specific polymer used in the cuvette.

Cuvette Caps, Lids, and Stoppers

Open cuvettes are adequate for many routine aqueous measurements. Closed cells become important when the sample is volatile or must remain isolated from the atmosphere.

Evaporation during a long scan or kinetic experiment can change concentration and therefore absorbance. This is particularly relevant for volatile organic solvents and small-volume cells, where loss of even a small quantity of solvent can become significant.

Depending on the application, cuvettes are available with:

• Disposable caps
• Screw caps
• Ground-glass stoppers
• PTFE stoppers
• Sealed configurations

PTFE closures are useful for many chemically demanding applications because of their broad solvent resistance.

Closed cells may also be appropriate for oxygen-sensitive samples, although truly air-sensitive work can require specialized sealed or septum-equipped cells rather than a conventional stopper.

Reusable vs. Disposable Cuvettes

Quartz and glass cuvettes are normally reusable. Their higher initial cost can be economical when a laboratory performs repeated measurements using relatively small numbers of cells.

Plastic cuvettes are generally intended for disposable use. This can offer substantial workflow advantages:

• Reduced cleaning time
• Lower risk of sample carryover
• Convenient high-throughput analysis
• Reduced risk of damaging expensive optical cells

The lowest-cost cuvette per unit is therefore not necessarily the lowest-cost option per analysis. Laboratory throughput, cleaning requirements, contamination risk, and staff time should all be considered.

Matched Cuvettes

Even high-quality cuvettes have small differences in path length, optical transmission, and surface characteristics.

For measurements in which these differences matter, matched cuvette sets are available. Cells in a matched set are selected to minimize optical differences between individual cuvettes.

Matched cells are particularly useful for:

• Double-beam spectrophotometers
• Comparative measurements
• Kinetic studies
• High-precision absorbance measurements

For routine work, matched cells may not be necessary. Consistent orientation of reusable cuvettes can nevertheless improve reproducibility.

Proper Handling

Cuvettes should be handled as optical components rather than ordinary laboratory containers.

Hold the cuvette by the frosted, ribbed, or non-optical surfaces whenever possible. Fingerprints on optical faces can absorb and scatter light.

Before measurement:

• Confirm that the outside surfaces are clean and dry.
• Remove fingerprints using appropriate lint-free optical tissue.
• Check for bubbles in the light path.
• Confirm that the sample level completely covers the instrument beam.
• Maintain consistent orientation for precision measurements.
• Inspect reusable cells for scratches, clouding, or residue.

Quartz is relatively hard but not scratch-proof. Abrasive powders, brushes, and inappropriate cleaning tools can permanently damage polished optical surfaces.

Cleaning Quartz and Glass Cuvettes

Reusable cuvettes should be cleaned promptly after use. Allowing samples to dry on the optical surfaces can make cleaning considerably more difficult.

For routine aqueous samples, a practical procedure is to rinse the cell several times with high-purity water and then allow it to drain or dry without touching the optical faces.

For organic samples, rinse with a chemically compatible solvent capable of removing the residue, followed by additional rinsing appropriate to the next analysis.

For inorganic residues or trace-metal work, dilute nitric acid may be suitable for compatible quartz or glass cells, followed by thorough rinsing with ultrapure water. Commercial laboratory cuvette cleaners are another option for difficult residues.

No single cleaning reagent is appropriate for every sample. Protein deposits, oils, dyes, nanoparticles, and trace metals may require different procedures.

Avoid:

• Abrasive brushes or powders on optical surfaces
• Hydrofluoric acid
• Hot concentrated alkali
• Cleaning agents incompatible with cemented or bonded cell construction

Hot concentrated alkaline solutions can attack both quartz and glass surfaces and permanently alter their optical performance.

Disposable plastic cuvettes are generally not intended for repeated cleaning and reuse.

Common Selection Errors

Choosing quartz simply because the instrument says UV-Vis. Use the analytical wavelength to determine the required material.

Using ordinary optical glass in the UV. Typical optical glass becomes increasingly unsuitable below approximately 320–340 nm. Verify the actual product specification near this range.

Assuming every quartz cuvette performs identically below 220 nm. Far-UV transmission depends strongly on the grade of fused silica.

Ignoring minimum sample volume. A standard cell may require roughly 2.5–3.5 mL even though the optical path itself is only 10 mm.

Using an arbitrary micro cuvette. The optical window must align with the instrument beam.

Selecting four clear sides and assuming the cell is fluorescence-grade. Optical geometry and material autofluorescence are separate specifications.

Using ordinary plastic for fluorescence. Polymer autofluorescence can overwhelm weak sample signals.

Ignoring solvent compatibility. Optical transmission does not guarantee chemical compatibility.

Touching the optical faces. Fingerprints and residue can alter measured transmission.

Ignoring path length. Cells with different path lengths will produce different absorbances for the same sample.

Practical Selection Guide

For routine purchasing, five specifications usually determine the appropriate cuvette.

For example, a routine bacterial optical-density measurement at 600 nm generally does not require an expensive quartz cell. A suitable disposable plastic cuvette may be the more efficient choice.

A UV absorbance measurement at 260 nm requires a UV-transparent cell, typically fused silica or a disposable cell specifically rated for that wavelength.

A sensitive fluorescence measurement may require not only four transparent sides but also fluorescence-grade fused silica with low background emission.

The correct cuvette is therefore not necessarily the most expensive one. It is the cell whose spectral range, path length, sample volume, optical geometry, chemical resistance, and background characteristics match the analytical method.

Laboratory Cuvettes from Longreen Lab

Longreen Lab supplies cuvettes and spectroscopy consumables for research, environmental, educational, pharmaceutical, healthcare, and industrial laboratories across Canada, including quartz/fused-silica, optical-glass, and disposable plastic cuvettes in standard and reduced-volume configurations.

When selecting a cuvette, check the analytical wavelength first, followed by path length, minimum sample volume, optical-face configuration, chemical compatibility, and whether the method involves absorbance or fluorescence. These specifications are more useful than choosing a cuvette based on material or price alone.
