LEAD Fluid Dual Channel Syringe Pump, YTD01-02
LEAD Fluid Dual Channel Syringe Pump, YTD01-02
Couldn't load pickup availability

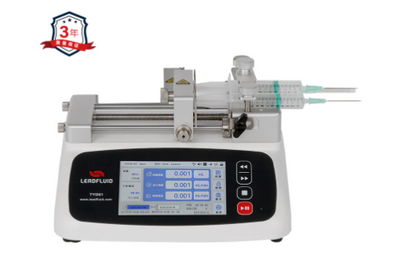

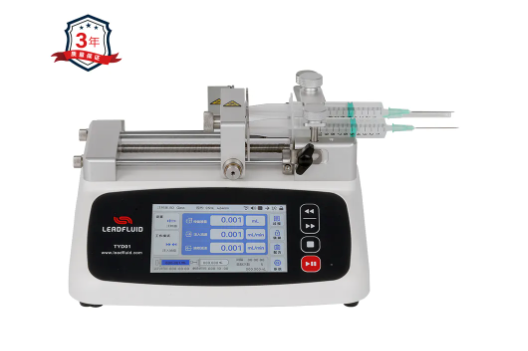

The TYD01-02 Laboratory Syringe Pump is a high-precision, multifunctional benchtop syringe pump, purpose-built for laboratory applications. Its advanced design and intelligent features make it the ideal choice for diverse experimental environments.
🔹 Key Features
-
Integrated design with 5-inch HD touch screen – Easy to operate with intuitive interface
-
Dual-syringe compatibility – Supports 2 plastic syringes or glass syringes (10 µL–60 mL)
-
Wide flow range – From 0.184 nL/min up to 83.318 mL/min, suitable for micro-volume to larger fluid transfers
-
Exceptional accuracy – Stroke control error less than ±0.35%, ensuring reliable high-precision micro-delivery
-
Multiple operation modes – Infusion, withdrawal, alternating cycles, and continuous delivery for versatile lab workflows
-
High-strength aviation bearing drive system – Provides significantly longer service life and higher accuracy compared to traditional copper sleeve bearings
-
Superior EMI resistance – Stable operation even under high-voltage electrostatic environments
-

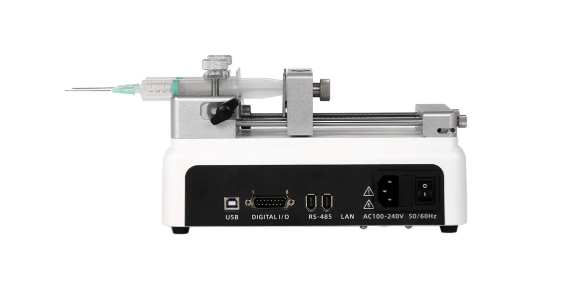

Automation ready – Equipped with RS485 communication, compatible with Modbus protocol for seamless integration with computers, PLCs, and microcontrollers in automated systems
Why Choose TYD01-02?
✔ High precision and wide flow control
✔ Durable mechanics with aviation-grade components
✔ Powerful anti-interference and automation support
✔ User-friendly HD touchscreen interface
The TYD01-02 combines accuracy, durability, and intelligent control—making it a trusted solution for modern laboratories in life sciences, pharmaceuticals, and fluid research.
Tech Specs
| Category | Specification |
|---|---|
| Syringe Capacity | 10 µL – 60 mL (plastic or glass), dual syringes supported |
| Channels | 2 |
| Stroke Length | 110 mm |
| Linear Speed Range | 1 µm/min – 150 mm/min |
| Resolution | 0.156 µm/µstep |
| Flow Rate Range | 0.184 nL/min – 83.318 mL/min |
| Accuracy | Stroke control error < ±0.35% (when stroke > 30% of full length) |
| Thrust | Rated linear thrust > 16 kgf |
| Display | 5″ full-color LCD touchscreen; shows volume, remaining volume, flow rate, etc. |
| Operation Modes | Infusion, withdrawal, infuse-then-withdraw, withdraw-then-infuse, continuous loop |
| Syringe Selection | Built-in syringe database + custom diameter input |
| Calibration | Volume calibration function for higher accuracy |
| Controls | Touchscreen + function keys (with indicator lights) |
| External Control | Start/stop ×1, direction ×1 |
| Signal Output | Start/stop ×1, direction ×1 |
| Communication | RS485, Modbus protocol; optional Wi-Fi |
| Functions | Pause/stop, key-tone, lock parameters, fast forward/reverse, brightness adjust, power-off memory |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Protection Rating | IP31 |
| Operating Conditions | Temperature 5–40 °C; humidity < 80% RH |
| Dimensions (L×W×H) | 240 × 196 × 125 mm |
| Weight | 2.95 kg |
