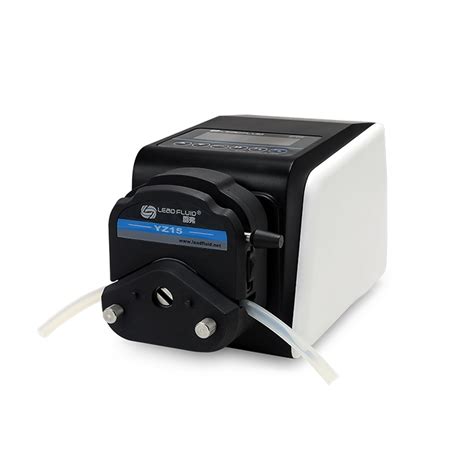

LEAD Fluid Peristaltic Pump, BT103S, with YZ15T head

Lead Fluid BT103S Speed-Variable Peristaltic Pump – Precision Micro-Flow Control

Compact, versatile, and high‑precision — the BT103S delivers unmatched control over micro-volume fluid handling for labs and industrial settings.

Key Features

Wide flow range: 0.00011–500 mL/min per channel, accommodating the most delicate to high‑volume processes

Variable speed control: 0.1–100 rpm, with 0.1 rpm resolution and accuracy within ±0.2 %

Flexible channel options: Support for up to 4 channels, enabling multi-fluid workflows

Smart control: Mobile app (optional Wi‑Fi) and RS485/Modbus for remote monitoring and integration with PLCs, HMIs, and more

Timed dosing capabilities: Set run time, intervals, and loop counts to automate dosing, dispensing, or flow testing

Anti-drip and slow-stop function: Prevents liquid drips after stopping the pump

Secure operation: Key-lock mode to avoid accidental input errors

Industry-grade durability: Streamlined ABS housing, customizable Chinese/English LCD interface, membrane keypad, and robust protection against dust/humidity (IP31)

AC100 - 240 V, 50/60 Hz power supply

Suitable tubings for YZ15T Head: #13, #14, #16, #17, #18, #19, #25
