LEAD Fluid Peristaltic Pump, BT101S, with YZ15T head

LEAD Fluid Peristaltic Pump, BT101S, with YZ15T head

$1,341.00 CAD
$1,341.00 CAD
Sale Sold out

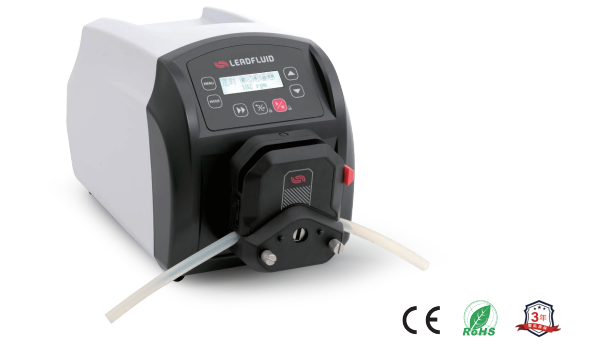

Lead Fluid BT101S Speed-Variable Peristaltic Pump – Precision Micro-Flow Control

Compact, versatile, and high‑precision — the BT101S delivers unmatched control over micro-volume fluid handling for labs and industrial settings.

Suitable tubings for YZ15T Head: #13, #14, #16, #17, #18, #19, #25

Technical Specifications

Spec Value
Flow Range 0.00011–750 mL/min
Speed Range 0.1–150 rpm (0.1 rpm ≤100 rpm; 1 rpm >100 rpm)
Speed Accuracy < ±0.2 %
Timing Settings 0.1–999 s/min/h/d for run time, intervals, and cycles
Voltage Supply AC 100–240 V, 50/60 Hz; < 30 W
Operating Conditions 0–40 °C; relative humidity < 80 %
Protection Rating IP31
Dimensions (L × W × H) 284 × 180 × 197 mm
Weight Approx. 3.6 kg
Communication/Control RS‑485, Modbus, optional Wi‑Fi; external 5‑24 V logic and analog input
Display 128×32 dot matrix LCD (Chinese/English)
